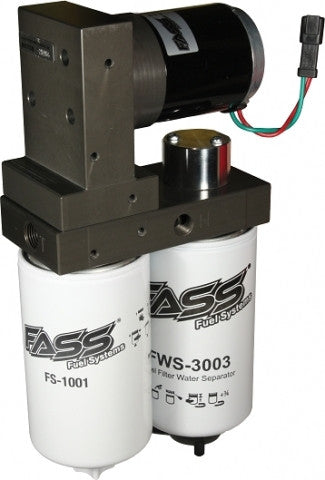

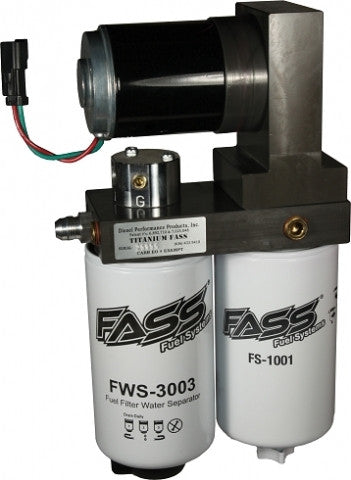

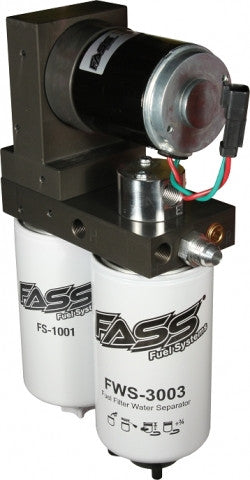

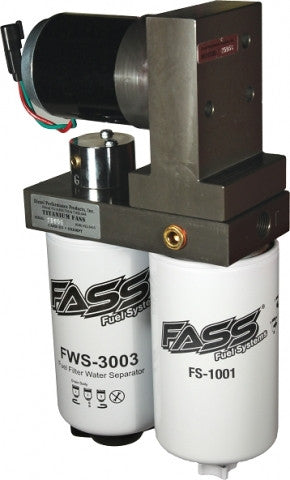

2011-2014 Titanium Series Diesel Fuel Lift Pump 150GPH GM Duramax 6.6L

  • $ 664.05


Part Number: TC11150G
Vehicle:
  • 2011-2014 Chevy
Application: Moderate to Extreme HP (600-900 HP)

FASS Fuel Systems Diesel Lift Pump 2011-2014 GM Duramax LML 6.6L Titanium Series 150GPH (TC11150G)

A FASS Fuel Systems can be a beneficial upgrade for your GM Duramax LML diesel engine, this is because your Duramax doesn’t come with a factory lift pump like other diesels. This requires your CP3 injection pump to pull your fuel under a vacuum, adding additional stress to your CP3 Pump and risk introduce additional air into your fuel. This is where a Titanium FASS Fuel Pump comes in to help.

The Titanium Series diesel fuel lift pump was engineered by FASS Fuel Systems to be the top performing, longest lasting and most reliable aftermarket filtration system in the diesel industry.  Rated at 150 gallons per hour and backed by our limited lifetime warranty the Titanium Series lift pump is capable of supporting your GM Duramax 6.6L diesel engine with enough fuel for multiple fueling system upgrades.  A Titanium Series lift pump also offers advanced filtration benefits that will help protect your Duramax’s injection systems, effectively extending the life of your Injection Pump and Injectors. These Benefits include an improved filtration rating of 3 Microns, a built in water separation filter and FASS Fuel Systems patented air/vapor removal process.   Duramax diesel engines are known for having injector failure issues; this can be caused by several different factors and FASS Filtration Systems is designed to eliminate those that are fuel related.

The Titanium Series diesel fuel pumps are the superior fuel pump and filtration system, in the diesel industry.  This is because here at FASS Fuel Systems we focus on perfecting our pumps and how they are engineered, taking the extra steps that our competitors ignore while they rush to get product out the door.  By doing this we have less than a 2% failure rating with our motor and a design that implements unique design features you can only get with FASS Fuel Systems

  • FASS Silencing Technology (FST) was developed by the engineering team here at FASS Fuel Systems to help reduce the noise created by aftermarket fuel and air separation diesel lift pumps. By using radius cuts, tighter tolerances on all gears and a high quality military Spec’d Coating over the aluminum base, FASS Fuel Systems was able to develop the quietest fuel air separation system on the market.
  • Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the diesel lift pump by creating smooth flowing cuts within the aluminum housing.  This prevents the reintroduction of air and vapor back into the fuel and also to prevent stagnate fuel pockets from forming within the corner of a 90 degree bend. FASS Fuel Systems Titanium Series Diesel Fuel Pumps are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90 degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.
  • Mass Flow Return (MFR) technology is used to continually “polish” your fuel by keeping a positive pressure on the fuel being delivered to the engine and returning the fuel, that’s not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is being constantly moved and cleaned, guarantying that your diesel truck always has the freshest and cleanest fuel possible.
  • Bolt On Bracket Mounts are the latest update we have made to our Titanium Series lift pumps.  Old mounting styles required drilling or welding when mounting your new pump.  This has now been simplified with our new bolt on brackets that utilize your Ford Super Duty factory bed bolt, the bolt that secures your truck bed to your frame. Mounting your Titanium Series lift pump takes only minutes and all brackets are made from machined steel for superior support and strength.

2011-2014 Duramax 150GPH Lift Pump Features:

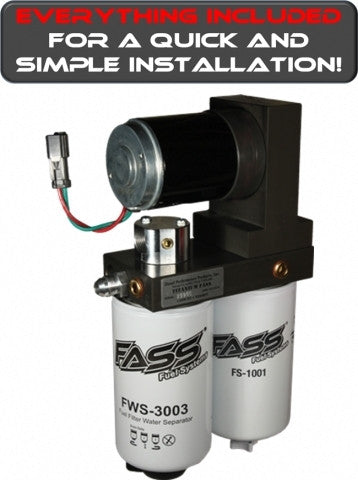

  • New Bolt On Bracket Installation
  • Preset 8-10 PSI Fuel Pressure
  • Complete Replacement Pump
  • 150 Gallons Per Hour Flow Rating
  • Removes Water, Air and Debris From Diesel Fuel
  • 3 Micron Filtration Rating
  • Protects and Extends The Life Of Your Injectors
  • Improved Cold Weather Starts
  • Decreases Carbon Monoxide and Carbon Dioxide Emissions
  • ½ Inch Fuel Lines and Ports
  • Fuel Mileage Improvement
  • Improved Fuel Volume Delivery
  • Smoother Engine Idle
  • Optional Electric Heater Ports
  • Optional Fuel Pressure Gauge Port
  • Limited Lifetime Warranty
  • 30,000 Mile Filter Life Expectancy
  • Quietest Motor On The Market

It is suggested for this higher performance Lift Pump to upgrade your pump kit to include our Bulkheading and Suction Tube kit (STK-1002).  Our bulkhead kit allows for a larger volume of diesel fuel to be retrieved by the fuel pump and will offer a convenient return option.  This is important for high performance GM Duramax application that demand large a large amount of diesel fuel for aggressive fueling upgrades.
