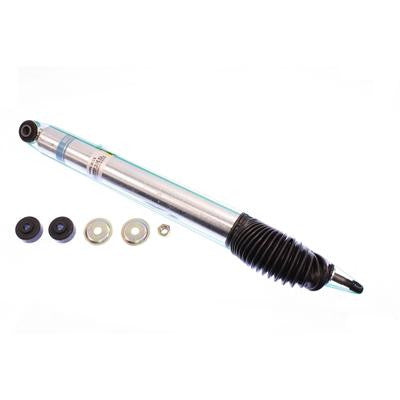

Bilstein 5100 Series Shock Absorber 24-066464

Bilstein 5100 Series Shock Absorber 24-066464

  • $ 90.06

Part Number: 24-066464
Old Part Number: 24-185769;F4-BE5-6646-H7

Setting: 5100 Series
Drive Type: 4WD
Position: Front
Descriptor: Front Lifted Height: 4-5"
Quantity Needed Per Vehicle: 2

*Collapsed Length (IN): 16.34
*Extended Length (IN): 27.32
*Collapsed Length (MM): 415
*Extended Length (MM): 694
Finish: Zinc plated
Reservoir: No
Body Design: 46mm ID smooth body (Non-coilover)

Bilstein 5100 Series Shock Absorbers are high gas pressure monotube shocks designed specifically for lifted pickups, SUVs and Jeeps. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. They offer super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride. (zinc-plated steel body, Triple-C-Technology coating )


*4-5" Lift is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet.

Shock Absorbers sold individually.
