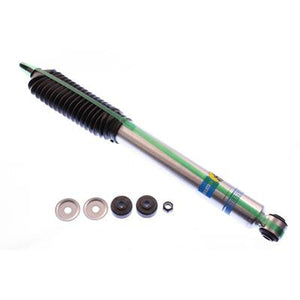

Bilstein 5100 Series Shock Absorber 24-185776
Part Number: 24-185776
Old Part Number: F4-BE5-6681-H8
Setting: 5100 Series
Drive Type: 4WD
Position: Front
Description: Front Lifted Height: (0"-2.5" Dodge) (4" Lift Super Duty)**
Quantity Needed Per Vehicle: 2
*Collapsed Length (IN): 14.88
*Extended Length (IN): 24.37
*Collapsed Length (MM): 378
*Extended Length (MM): 619
Finish: Zinc plated
Reservoir: No
Body Design: 46mm ID smooth body (Non-coilover)
Bilstein 5100 Series Shock Absorbers are high gas pressure monotube shocks designed specifically for lifted pickups, SUVs and Jeeps. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. They offer super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride. (zinc-plated steel body, Triple-C-Technology coating )
Applications:
05-14 Ford Super Duty F-250/350 4WD - Front (Lifted 4")
94-12 Dodge Ram 2500/3500 4WD - Front (Lifted 0"-2.5")
2013 Dodge Ram 2500 4WD - Front (Lifted 0"-2.5")
*Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet.
Shock Absorbers sold individually.
