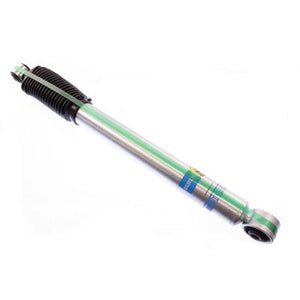

Bilstein 5100 Series Shock Absorber 24-186636
Part Number: 24-186636
Old Part Number: F4-BE5-B514-H0
Setting: 5100 Series
Drive Type: 4WD
Position: Rear
Descriptor: Rear Lifted Height: 4" GM / 2" Dodge
Quantity Needed Per Vehicle: 2
*Collapsed Length (IN): 18.17
*Extended Length (IN): 29.92
*Collapsed Length (MM): 461.5
*Extended Length (MM): 760
Finish: Zinc plated
Reservoir: No
Body Design: 46mm ID smooth body (Non-coilover)
Bilstein 5100 Series Shock Absorbers are high gas pressure monotube shocks designed specifically for lifted pickups, SUVs and Jeeps. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. They offer super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride. (zinc-plated steel body, Triple-C-Technology coating )
Applications:
03-12 Dodge Ram 3500 4WD - Rear Lifted 2"
03-13 Dodge Ram 2500 4WD - Rear Lifted 2"
99-10 GM 2500/3500HD 4WD - Rear Lifted 4" (NON-Quadrasteer)
*Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. An eye to eye shock is measured from the center of one eyelet to the center of the other eyelet
Shock Absorbers sold individually.
