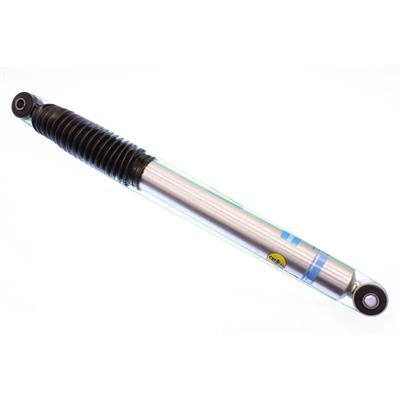

Bilstein 5100 Series Shock Absorber 24-186742

Bilstein 5100 Series Shock Absorber 24-186742

  • $ 90.06

46mm Monotube Shock Absorber

Part Number: 24-186742
Old Part Number: F4-BE5-D147-H0

Setting: 5100 Series
Drive Type: 4WD
Position: Rear
Front Spring Type: Torsion Bar
Rear Spring Type: Leaf
Descriptor: Excludes vehicles equipped with Quadrasteer; Rear Lifted Height: 0-1"
Quantity Needed Per Vehicle: 2

*Collapsed Length (IN): 16.14
*Extended Length (IN): 26.15
*Collapsed Length (MM): 410
*Extended Length (MM): 664.2
Finish: Zinc plated
Reservoir: No
Body Design: 46mm ID smooth body (Non-coilover)

01-10 GM 2500/3500 HD  (Non-Quadrasteer)

Bilstein 5100 Series Shock Absorbers are high gas pressure monotube shocks designed specifically for lifted pickups, SUVs and Jeeps. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. They offer super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride. (zinc-plated steel body, Triple-C-Technology coating )

*Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. An eye to eye shock is measured from the center of one eyelet to the center of the other eyelet.

Shock Absorbers sold individually.
