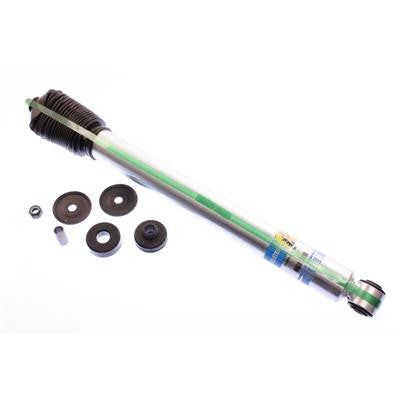

Bilstein 5100 Series Shock Absorber 24-187213
Part Number: 24-187213
Old Part Number: F4-BE5-F255-H0
Setting: 5100 Series
Drive Type: 4WD
Position: Front
Descriptor: Front Lifted Height: 6-8"
Quantity Needed Per Vehicle: 2
*Collapsed Length (IN): 19.57
*Extended Length (IN): 30.31
*Collapsed Length (MM): 497
*Extended Length (MM): 770
Finish: Zinc plated
Reservoir: No
Body Design: 46mm ID smooth body (Non-coilover)
The Bilstein 24-187213 5100 Series Shock Absorber are high performance, high gas pressure monotube shocks designed specifically for lifted pickups, SUV's and Jeeps. These shocks look as good as they perform with a zinc-plated steel body and triple-c coating technology. Internally, they feature a 46mm digressive piston with self-adjusting deflective disc valving. The super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an excellent ride on the street.
*6"-8" Lift is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet.
Shock Absorbers sold individually.
