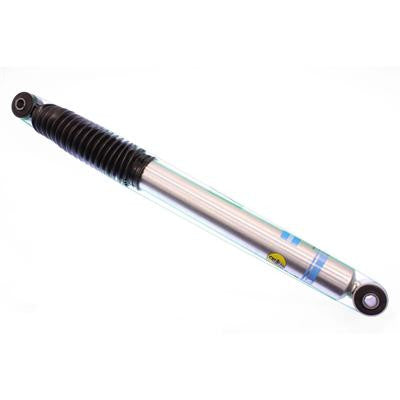

Bilstein 5100 Series Shock Absorber 24-191203
Part Number: 24-191203
Old Part Number: F4-BE5-6647-H1
Setting: 5100 Series
Position: Rear
Descriptor: Rear Lifted Height:0-2"*
Quantity Needed Per Vehicle: 2
*Collapsed Length (IN): 16.95
*Extended Length (IN): 27.36
*Collapsed Length (MM): 430.5
*Extended Length (MM): 695
Finish: Zinc plated
Reservoir: No
Body Design: 46mm ID smooth body (Non-coilover)
Bilstein 5100 Series Shock Absorbers are high gas pressure monotube shocks designed specifically for lifted pickups, SUVs and Jeeps. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. They offer super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride. (zinc-plated steel body, Triple-C-Technology coating )
Applications:
94-02 Dodge Ram 2500/3500 4WD - Rear Lifted 2"
03-12 Dodge Ram 2500/3500 4WD - Rear Lifted "0-1"
2013 Ram 2500 4WD - Rear Lifted "0-1"
99-10 GM 2500/3500HD 4WD - Rear Lifted "0-1"
*Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. An eye to eye shock is measured from the center of one eyelet to the center of the other eyelet
Shock Absorbers sold individually.
