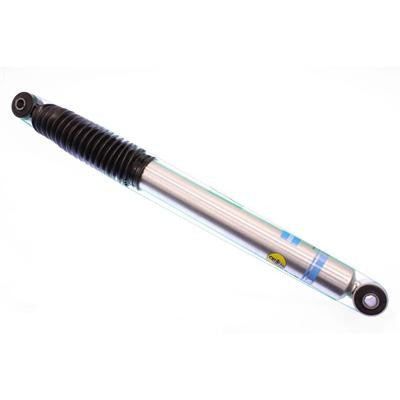

Bilstein 5100 Series Shock Absorber 24-196451
46mm Monotube Shock Absorber
Part Number: 24-196451
Setting: 5100 Series
Position: Front
Descriptor: Front Lifted Height: 0-1.5"
Quantity Per Vehicle: 2
*Collapsed Length (IN): 14.06
*Extended Length (IN): 18.64
*Collapsed Length (MM): 357.0
*Extended Length (MM): 473.5
Finish: Zinc plated
Reservoir: No
Body Design: 46mm ID snap ring grooved body (Coilover)
Bilstein 5100 Series Ride Height Adjustable Shock Absorbers are designed for front coilover style pickup suspensions. The monotube shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. Multiple snap-ring grooves in the shock body allow for different spring seat positions, providing 0"-2.5" of front end lift, depending on application. Provides increased wheel travel and improved handling! (zinc-plated steel body, Triple-C-Technology® coating)
Applications:
11-14 Chevrolet Silverado 2500/3500HD
11-14 GMC Sierra 2500/3500HD
*Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. An eye to eye shock is measured from the center of one eyelet to the center of the other eyelet
Shock Absorbers sold individually.
