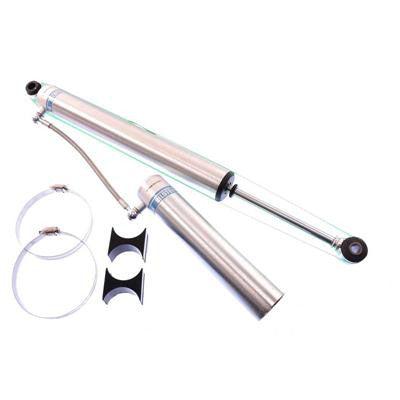

Bilstein 5160 Series Shock Absorber 25-187786
The Bilstein 5160 Series Shock Absorber 25-187786 are a direct fit for your 2005-2014 Ford F-250/350 4WD Pickup. This bolt-in replacement is designed to help you avoid the fabrication generally associated with being able to run a high performance reservoir shock. The monotube shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. Benefits of the reservoir include increased cooling capacity and increased shock travel. (zinc-plated steel body, Triple-C-Technology coating).
Part Number: 25-187786
Old Part Number: F4-BR5-H076-H0
Series: 5160 Series
Drive Type: 4WD
Position: Rear
Descriptor: Rear Lifted Height: 0-2"
Quantity Per Vehicle: 2
*Collapsed Length (IN): 18.03
*Extended Length (IN): 31.24
*Collapsed Length (MM): 458
*Extended Length (MM): 793.5
Finish: Zinc Plated
Reservoir: Yes
Body Design: 46mm ID Smooth Body (Non-Coilover)
*Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet.
Shock Absorbers sold individually.
Part Number: 25-187786
Old Part Number: F4-BR5-H076-H0
Series: 5160 Series
Drive Type: 4WD
Position: Rear
Descriptor: Rear Lifted Height: 0-2"
Quantity Per Vehicle: 2
*Collapsed Length (IN): 18.03
*Extended Length (IN): 31.24
*Collapsed Length (MM): 458
*Extended Length (MM): 793.5
Finish: Zinc Plated
Reservoir: Yes
Body Design: 46mm ID Smooth Body (Non-Coilover)
*Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet.
Shock Absorbers sold individually.
