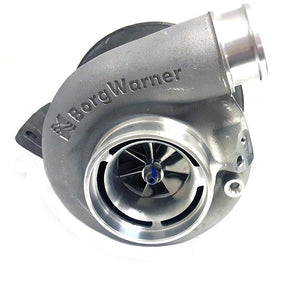

The Borg Warner S480 FMW turbo has an 80MM inducer and utilizes the J-Type turbine wheels which out-flows and out-responds the previous 80mm/87mm wheel used. This high-flow model has compressor flow over 125 lbs per minute and is rated at 500 to 1,250 hp
*1,000+HP Capable
Twin hydrodynamic journal bearings
Extended tip technology compressor wheel
Twin scroll turbine housing
Adjustable compressor and turbine housing orientation
Compressor cover re-circulation grooves
Standard turbine inlet and outlet connections
80mm comp. Wheel Inducer Diameter
87mm Turbine Wheel Outer Diameter
